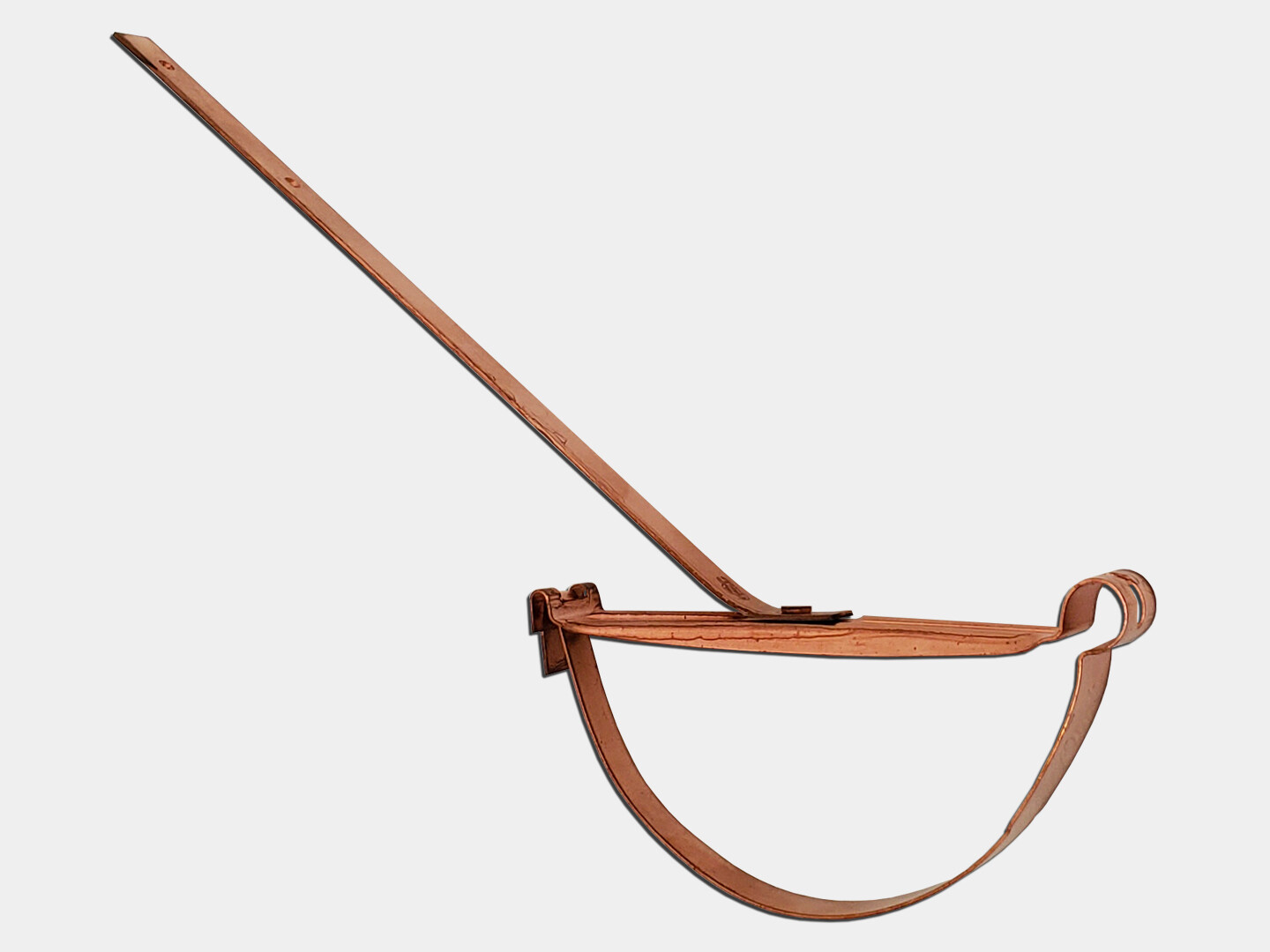

Copper Rival Strap Hanger for Half Round Gutter

Rival Strap for Half Round Copper Gutter

Wraps around gutter, mounts to the roof

The rival strap hanger is used to hang gutter and attach it directly to a roof structure. Its installation is common when fascia boards are not present.
The hanger is also useful since it can be secured to the gutter prior to attaching the gutter to the roof.
To use this hanger, wrap it around the gutter, fold the tab at the back to secure it to the gutter, then screw it to a roofing structure.
Standard Spacing 16" to 24" on center, depending on application / expected snow loads.

Works with Reverse Bead and Traditional Bead Gutters - Single bead

Specifications

• Thickness: 0.03"
• Strap length: 9" long after bend
• Installation: Wrap around gutter
• Holes: 0.5" and 2.5" in from end of strap
• Roof strap thickness: 0.48"
• Hanger width: 1" at widest point
