Gutter End Caps
End Caps for Gutters
Copper, Aluminum, Steel, Galvalume Plus & More

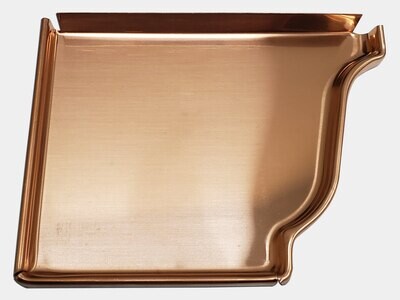

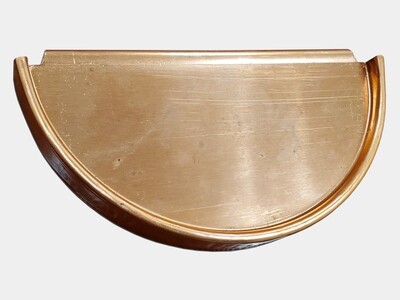

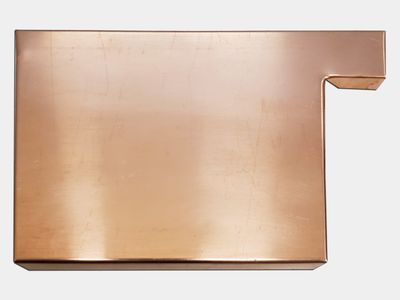

K&M Gutter Supply offers standard k-style gutter end caps, box gutter end caps, as well as half round gutter end caps. We can also manufacture end caps for custom profiles.
Most standard sizes are offered as stamped parts while others are laser cut and tabbed.
At K&M Sheet Metal and Gutter Supply, we end caps in 24 gauge colored galvanized steel, 24 gauge Galvalume plus, 0.032″ Kynar aluminum colors, 0.027″ regular standard aluminum colors, copper, lead coated copper, zinc, freedom gray and other materials.
Have a picture or drawing of something else you'd like for us to manufacture? Let us know. We may be able to custom manufacture it for you.
Just email us photos, drawings, material specs and K&M will let you know if it's something we can help you with.
Submittals & Downloads
PDF - Commercial Box Gutter - Style A
PDF - Residential Box Gutter - Style D
PDF - Industrial Box Gutter - Style F
PDF - Half-round gutter expansion joint
PDF - 5" Single reverse bead half-round gutter
PDF - 6" Single reverse bead half-round gutter
PDF - 8" Single reverse bead half-round gutter
PDF - 6" Euro bead half-round gutter
PDF - 8" Euro bead half-round gutter
PDF - 5" Traditional double bead gutter
PDF - 6" Traditional double bead gutter
PDF - 7" Traditional double bead gutter
PDF - 7.6" Traditional double bead gutter
PDF - 8" Traditional double bead gutter
PDF - 3" Euro bead high back half-round gutter
PDF - 6" Euro bead high back half-round gutter
PDF - 8" Euro bead high back half-round gutter
PDF - K-Style Gutter size chart
PDF - K-Style Gutter End Cap
Color and Material Options
0.027" Aluminum End Cap Color Options
Black
Dark Bronze
Musket Brown
Royal Brown
Almond
Linen
Low Gloss White
High Gloss White
Pac Clad Standard 0.032" Kynar Aluminum and 24 Gauge Galvalume Steel Common Gutter End Caps Color Options
Black
Matte Black
Charcoal
Dark Bronze
Medium Bronze
Copper Penny
Almond
Bone White
Common Material Options for End Caps
Copper
Pre Patina Copper
Freedom Gray
Galvalume Plus
Lead Coated Copper
Zinc
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
FAQs – Frequently Asked Questions
What size end caps are available?
Normally, 5", 6" 7", 7.6", 8" and 10", but others are available upon request.
What is the standard thickness for gutter end caps?
0.027" for aluminum, 0.032" for Kynar aluminum, 24 ga for Kynar Galvalume and Galvalume plus, and 16 oz for copper.
Why are some end caps notched?
Because those parts are hand made and not stamped.
How should end caps be installed?
With zip screws, rivets or crimped on aluminum and steel and soldered on copper.
What type of solder should I use for copper, lead coated copper, freedom gray ans stainless steel?
50/50 tin / lead is recommended.
Can copper end caps be riveted and sealed / caulked
Yes, but that is not our recommendation.
Are box gutter end caps available?
Yes, our box gutter end caps are available as well as and custom profile gutter end caps as an special order item.
No matter what your choice is, K&M Gutter Supply has the best choices for purchasing gutter and accessories online from the comfort of your home with shipping to all US States. We also offer local pickups for customers in the Raleigh Durham Area in North Carolina as well as discount for bulk orders / Contractors.
