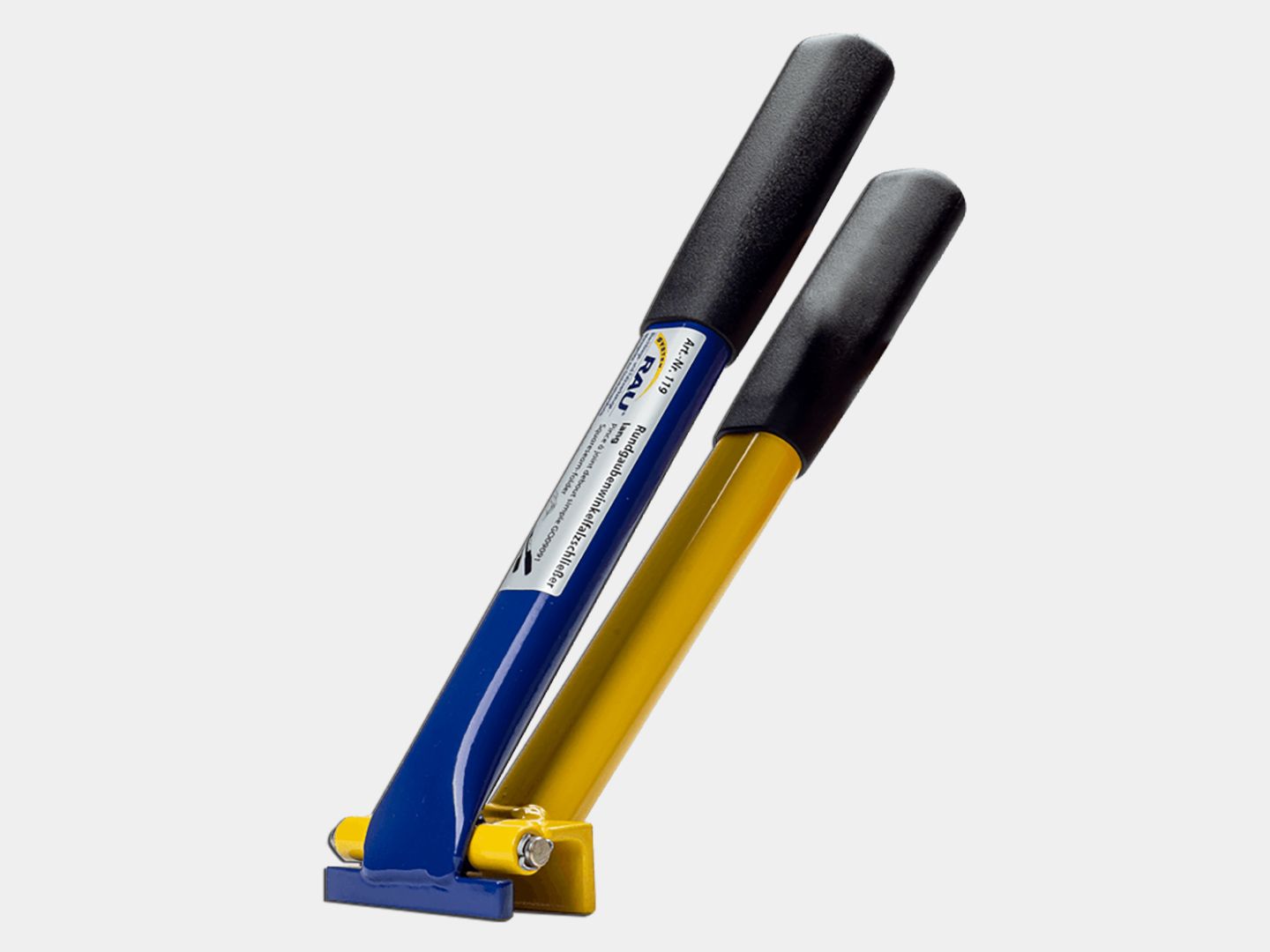

Name: Rau 119 Piccolo Single lock Standing Seam Folding Tool
Brand: K&M Sheet Metal
SKU: RAU119
Price: 259.95 USD
Availability: InStock

+2

Rau 119 Piccolo Single lock Standing Seam Folding Tool

Store/Tools & Supplies/Metal Folders and Seamers

Product Details

Brand: K&M Sheet Metal

Rau Systems 119 Piccolo Standing Seam Folding Tool

Must have tool for metal roofers - Great for Dormers and Radius Roofs

Rau Systems tool for folding seams on standing seam roof panels.
This small tool is great for creating a single lock in hard to access areas, as well as being an excellent tool for small roofs, such as those on chimney caps, radius dormers etc.
This is a version of the Rau Systems 127 with longer handles.

Specifications

Used for the first bend / first stage of standing seam metal roof system (creates the single lock).
Used on seams that measure up to 1/2° across on the top leg
Your hands never have to leave the tool when closing the seam and are also in a comfortable bending position. This results in maximum speed and efficiency when on the roof
Jaw width: 2.75" (69 mm)
Overall length: 12.59" (320 mm)
Weight: 2.2 lbs. (1 kg)
Handle color: yellow and blue
Made in Germany

Video of a single lock profile being created with a Rau 111 (same movement/result with a larger tool)
