Chimney Chase Cover

CC200
$184.95
In stock
1
Product Details
Brand: K&M Sheet Metal
leadtime: 15
Shipping: This item normally requires a crate and is shipped via freight truck.
Freight Delivery: Customer is responsible for unloading materials from the truck.

Chimney Pad / Chimney Chase Cover

Available in Copper, Lead Coated Copper, Freedom Gray, Stainless Steel, kynar aluminum and galvalume

This economical chimney cap is the obvious choice to protect a chimney on a budget. It normally features 3.5" tall sides, with an x-bend to add rigidity. This product is cut by laser to ensure a perfect fitting.
Custom designs, sizes and different materials may be available. Please contact us for pricing. Made in the USA.

Materials

  • Copper - 16 oz. and 20 oz.
  • Freedom Gray - 16 oz. and 20 oz.
  • Galvalume Plus - 24 Gauge
  • Kynar Aluminum - 0.032"
  • Kynar Galvalume (Steel) - 24 Gauge
  • Lead Coated Copper - 16 oz. and 20 oz.
  • Stainless Steel - 2B 304 24 gauge

Specifications

  • Base height: 3.5" with kick
  • Collar height: 3" Standard

Availability

  • Custom Made to order
  • Made in the USA
Ordering Instructions
  • A - Please pick the approximate width and length (fields 2 and 3). These fields are used to calculate the price of your chimney cap.
  • B - If placing an order for a chimney cap out of square, make sure to upload a top view sketch with dimensions for fabrication.
  • C - If a cap requires 2 sheets for fabrication, these will be put together with a pipe lock seam. There is no way around this.
  • D - It is our recommendation that copper, lead coated copper, Freedom Gray and stainless steel caps be soldered.
  • E - For all chase covers containing flues and all that are out of square, a sketch is required displaying all dimensions and flue locations where necessary. Flue holes may be square, rectangular or round. Contact us if you require a different shape.
    As a standard, we will add 1/4" to the dimension of the diameter of the hole provided. For example, a 12" diameter flue hole will become 12.25". You may send us a message during the checkout process if you prefer that this is not done.
    Please, make sure to add up all dimensions to make sure they are correct before submitting a sketch.
  • F - Although installation is considered simple and straight forward, we recommend that it be done by a professional.

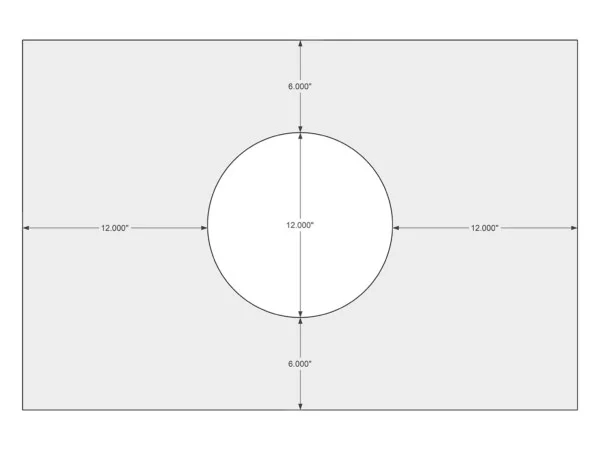

Example of acceptable flue location and size sketch (hand sketches are fine)

Flue location sketch example
Submittals & Downloads
Color and Material Options
Pac Clad Standard 0.032" Kynar Aluminum and 24 Gauge Galvalume Steel Common Chimney Caps Color Options
Black kynar aluminum

Black Aluminum

Matte black kynar steel

Matte Black Steel

Black kynar aluminum and galvalume

Charcoal Aluminum Steel

Dark bronze aluminum and galvanized steel

Dark Bronze Aluminum Steel

Medium bronze aluminum and galvanized steel

Medium Bronze Aluminum Steel

Copper penny aluminum and galvanized steel

Copper Penny Aluminum Steel

Almond aluminum and galvanized steel

Almond Aluminum Steel

Bone white aluminum and galvanized steel

Bone White Aluminum Steel

Common Material Options for Chimney Caps
Copper

Copper

Pre Patina Copper

Pre Patina Copper

Freedom gray

Freedom Gray

Galvalume Plus

Galvalume Plus

Lead coated copper

Lead Coated Copper

Stainless Steel

Stainless Steel

Zinc

Zinc

Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.

Choosing the right material

Chimney Cap Material: Copper, Stainless Steel, Aluminum or Galvalume (Steel)?

Colored Materials: The first thing to consider is whether something in colors is desired. If so, that narrows choices down to either Kynar Aluminum or Kynar Galvalume (steel). Kynar-based PVDF are coatings formulated to resist sun and weather damage.

  • Steel (Galvalume) - Available in colors: Zinc Aluminum coated Steel for higher corrosion resistance, coatted with Kynar colors. Comes in the same colors as aluminum with a more rigid substrate, however, it is also heavier. Galvalume materials have self healing properties where cut or scratched.
    Since this material is steel based, it is not an ideal choice for coastal (saltwater or brackish water) environments. For those, aluminum is the better choice.
  • Aluminum - Available in colors: Offering the same colors and look as Kynar coated galvalume steel at a lighter weight. Unlike galvalume, this can be used in costal environments.
  • Galvalume Plus (Acrylume): Zinc/Aluminum coated steel with an acrylic coating. Galvalume has a similar look to galvanized steel while being vastly more corrosion resistant. Galvalume materials also have self healing properties where cut or scratched.
  • Copper: Our most popular material. Copper does not rust and has antimicrobial properties. It is widely used in any environment. Copper can can be soldered or welded, which makes it a much better choice for now and future repairs. Copper comes with a raw finish that will start to patina immediately once outdoors, turning partly brown the day after the installation and mostly brown within a month. Although there's no precise way to determine due to many factors, copper will typically start to turn green within 25-35 years.
  • Freedom Gray: This copper based material offers all the same advantages as copper with a tin/zinc coating that will develop a mature slate gray patina after around one to three years of weather exposure.
  • Lead Coated Copper: Copper that has been dipped in lead. A traditional material that offers all the same advantages as copper. Because of the lack of solubility, not only lead coated copper prevents most if not all staining, it's environmentally safe.
  • Stainless steel: A trade off between color choices and sturdiness/longevity. While stainless steel withstands the test of time, it is limited to its mill finish (2B finish) look. The stainless steel we typically offer is a 304 alloy (most common). This alloy should not be used in coastal environments. A 316 marine alloy can be offered as a special order material.
  • Zinc: Special order. A traditional look at the cost of a more malleable, lighter material. While easier to work with, zinc is soft, and not always (depending on size and configuration) the best choice for a chimney cap. It can be offered as a special order in either a raw or other finishes.
