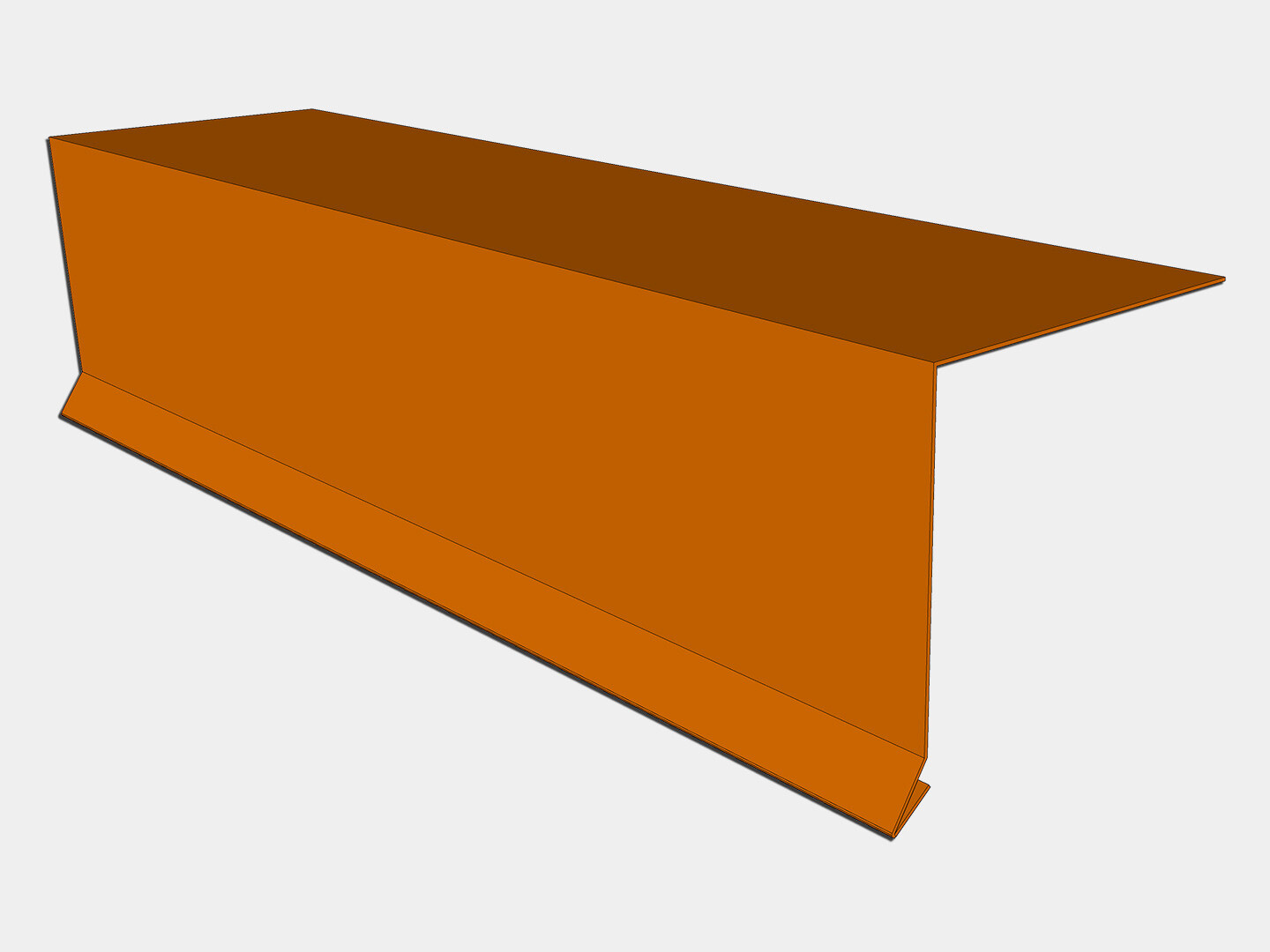

L Shape Roof Drip Edge Flashing Metal - 10' Length
Edge metal used on rubber, tile, slate and shingle roofs. Available in 16 oz. and 20 oz. Copper.
This simple drip edge profile, also known as "baldy cleat" is used on rubber roofs, slate and shingle roofs. It can be used to help direct water towards a gutter for example. The name drip edge comes from the kick portion of this profile, at the very bottom, responsible for kicking the water away from the fascia board. That portion is essentially a drip edge. Other common names for our drip edge profiles include 2"x2" drip edge, 3"x3" drip edge, etc. You may order custom profiles through this page, browse our store for other profiles or send us an email for a quote on something even more intricate.
Specifications
Material: 16 oz. and 20 oz. Copper
10' Lengths
Made to Order
Made in the USA
(H) Nominal Size
Material
(A) Roof
(B) Face
(C) Kick
(D) Hem
Stock (Total Material)
1.5"
Copper, Freedom Gray, Lead Coated Copper
2.125"
1"
0.5"
0.375"
4"
1.5"
Aluminum, Steel, Galvalume and Stainless Steel
2.125"
1"
0.5"
0.375"
4"
3"
Copper, Freedom Gray, Lead Coated Copper
2.625"
2.5"
0.5"
0.375"
6"
3"
Aluminum, Steel, Galvalume and Stainless Steel
2.625"
2.5"
0.5"
0.375"
6"
4"
Copper, Freedom Gray, Lead Coated Copper
2.825"
3.5"
0.5"
0.375"
7.2"
4"
Aluminum, Steel, Galvalume and Stainless Steel
3.625"
3.5"
0.5"
0.375"
8"
6"
Copper, Freedom Gray, Lead Coated Copper
2.625"
5.5"
0.5"
0.375"
9"
6"
Aluminum, Steel, Galvalume and Stainless Steel
3.225"
5.5"
0.5"
0.375"
9.6"
8"
Copper, Freedom Gray, Lead Coated Copper
3.625"
7.5"
0.5"
0.375"
12"
8"
Aluminum, Steel, Galvalume and Stainless Steel
3.625"
7.5"
0.5"
0.375"
12"
All dimensions are approximate with ~1/8" tolerance.
Ordering Instructions
1 - Pick your material. For other materials navigate back to Edge Metal.
2.0 - Pick your dimensions. These are provided in the chart below.
2.1 -Custom dimensions: Pick the appropriate selection for the amount of stock material needed. Example: If adding all dimensions of your custom profile (A+B+C+D) equals 11.5", you'll pick the corresponding dimensions, for example, 9.062" to 12" or 9.6" to 12" (depending on material). Provide dimensions for A, B, C and D (if hem is present) on field 5.
3 -Hem. The hem is the folded portion after the kick. If you select "No hem", the material that is used for this portion would be added to the roof portion. Example: A 1.5" profile in copper has a 0.375" hem, which would be added to the roof dimension (A). (A) would become 2.5" (2.125" +0.375").
4 - Roof pitch. Select 0 for no pitch / 90° standard angle / flat roof, or the appropriate / closest pitch. The roof pitch is determined by the rise over the run. Example: If for every horizontal 12" your roof rises 6", you have a pitch 6.
5 - This is where you'll add dimensions for fields A, B, C and D if a custom profile was selected on field 2, otherwise leave blank.
6 - If you prefer to email a sketch you can use this field, otherwise, leave blank.
Material Options for Roof Flashing Metal and Edge Metal
Copper
Pre Patina Copper
Freedom gray®
Galvalume
Lead coated copper
Stainless Steel
Zinc
Copper is the most popular metal roofing and flashing metal. It is offered in 16 oz. and 20 oz. Freedom Gray (zinc / tin coated copper) is offered in 16 oz. and 20 oz. Lead Coated Copper is offered in 16 oz. and 20 oz. Stainless steel is offered in 24 gauge 304 2B. Zinc is offered in 0.7 mm and 0.8 mm with a raw finish.
