T Shape Roof Locking Drip Edge Flashing Metal - 10' Length
Edge metal used on rubber, tile, slate, shingle and metal roofs. Available in 16 oz. and 20 oz. Copper.

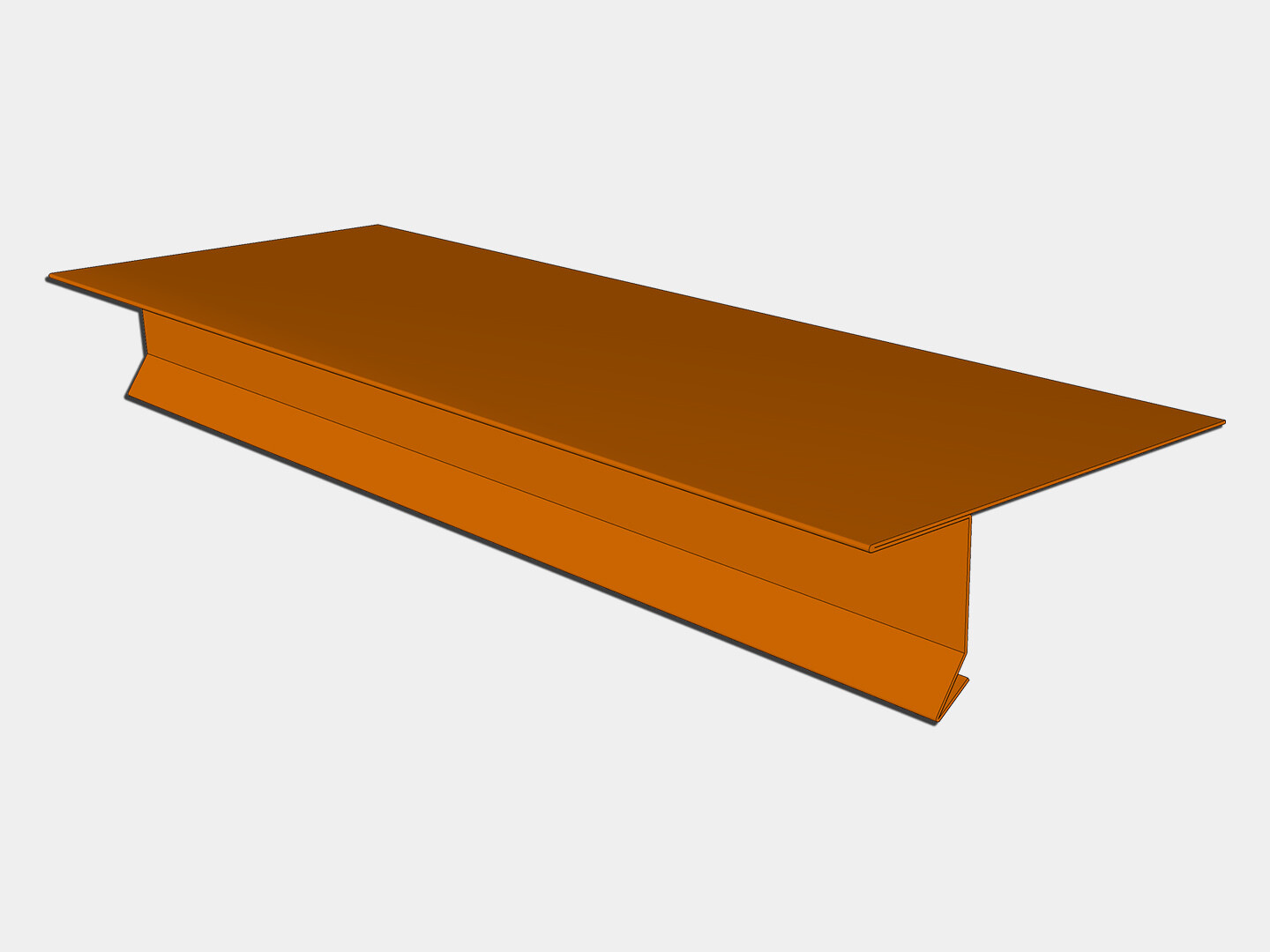

This simple drip edge profile, also known as "t-style" is used on any type roofing, but is a requirement for metal roofs due to its overhang wich is used to secure metal roof panels. This style of drip edge is a preferred choice for many roofers because the overhang helps with directing water away from the vertical portion of the drip edge, minimizing the risk of the water going back against the fascia. The name drip edge comes from the kick portion of this profile, at the very bottom, responsible for kicking the water away from the fascia board. That portion is essentially a drip edge. Another common name for this drip edge profile is "metal roofing drip edge". This may be ordered as an angled drip edge or flat. A flat drip edge will also work on an angled roof, except "B" will not sit up against the fascia, it will be perpendicular to the roof. Although this may not be ideal, if this is being placed on both a rake edge along with a gable it will make both pieces line up as far as height goes. Otherwise, if the rake edge metal is manufactured at an angle, it will need to have a taller "B" dimension to line up with the gable drip edge. You may order custom profiles through this page, browse our store for other profiles or send us an email for a quote on something even more intricate.
Specifications
Material: 16 oz. and 20 oz. Copper
10' Lengths
Made to Order
Made in the USA
(H) Nominal Size
Material
(A) Roof
(B) Face
(C) Kick
(D) Hem
(E) Overhang
(F)
Stock (Total Material)
1.5"
Copper, Freedom Gray, Lead Coated Copper
2.125"
1"
0.5"
0.375"
1"
3.125"
6"
1.5"
Aluminum, Steel, Galvalume and Stainless Steel
2.125"
1"
0.5"
0.375"
1"
3.825"
6"
2"
Copper, Freedom Gray, Lead Coated Copper
2.625"
1.5"
0.5"
0.375"
1"
3.125"
7.2"
2"
Aluminum, Steel, Galvalume and Stainless Steel
2.625"
1.5"
0.5"
0.375"
1"
4.625"
8"
All dimensions are approximate with ~1/8" tolerance.
Ordering Instructions
1 - Pick your material. For other materials navigate back to Edge Metal.
2.0 - Pick your dimensions. These are provided in the chart below.
2.1 -Custom dimensions: Pick the appropriate selection for the amount of stock material needed. Example: If adding all dimensions of your custom profile (B+C+D+E+F) equals 6.5", you'll pick the corresponding dimensions, for example, 6.062" to 7.2" or 6.062" to 8" (depending on material). Provide dimensions for B, C, D, E and F on field 5.
3 -Hem. The hem is the folded portion after the kick. If you select "No hem", the material that is used for this portion would be added to the roof portion. Example: A 1.5" profile in copper has a 0.375" hem, which would be added to the roof dimension (F). (F) would become 3.5" (3.125" +0.375").
4 - Roof pitch. Select 0 for no pitch / 90° standard angle / flat roof, or the appropriate / closest pitch. The roof pitch is determined by the rise over the run. Example: If for every horizontal 12" your roof rises 6", you have a pitch 6.
5 - This is where you'll add dimensions for fields B, C, D, E and F if a custom profile was selected on field 2, otherwise leave blank.
6 - If you prefer to email a sketch you can use this field, otherwise, leave blank.
Material Options for Roof Flashing Metal and Edge Metal
Copper
Pre Patina Copper
Freedom gray®
Galvalume
Lead coated copper
Stainless Steel
Zinc
Copper is the most popular metal roofing and flashing metal. It is offered in 16 oz. and 20 oz. Freedom Gray (zinc / tin coated copper) is offered in 16 oz. and 20 oz. Lead Coated Copper is offered in 16 oz. and 20 oz. Stainless steel is offered in 24 gauge 304 2B. Zinc is offered in 0.7 mm and 0.8 mm with a raw finish.
