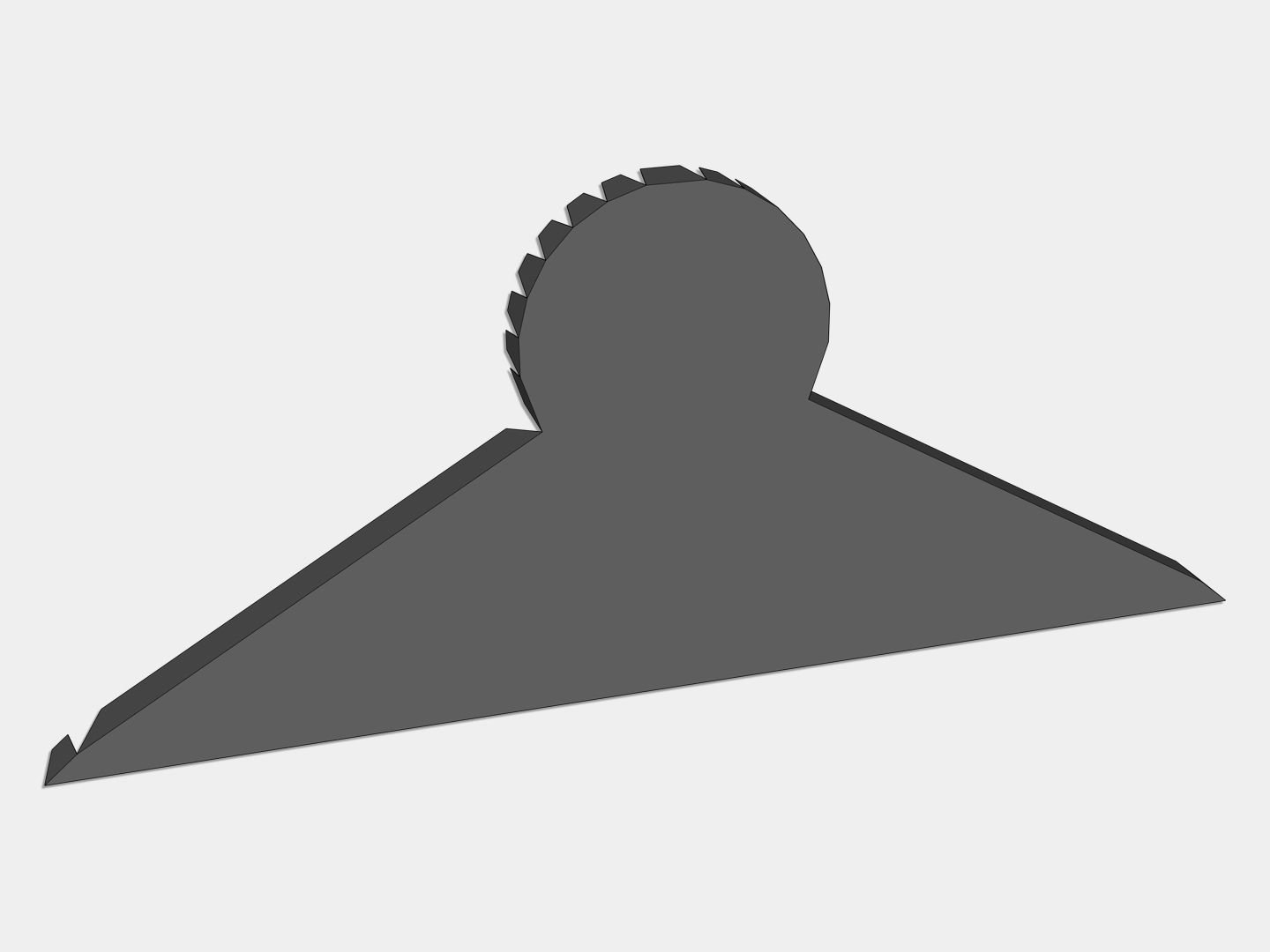

End Cap for Bonderized Steel Ridge Roll Roof Flashing (Paint Grip)
Product Details
Brand: K&M Sheet Metal
End Cap for Ridge Roll
Available in 26 Gauge Bonderized Steel.
Flat end cap for K&M's Ridge Roll. Features tabs for securing to our ridge cap via rivets, zip screws or soldering.
Custom profiles and dimension changes may be available for purchase and can be quoted via email.
Specifications
- Material: 26 Gauge Bonderized Steel
- Made to Order
- Made in the USA
About Bonderized
- Bonderized steel is made with G90 Galvanized Steel that receives a phosphate bath, then a layer of Chromate. It is then dried, leaving it ready to accept paint.
Bonderized has a dull gray colored finish. It is meant to and it must be painted in order to avoid quick rusting.
Ridge Cap Dimensions
| (A) Nominal / Stock size | Material | (B) | (C) | (D) Closed Hem | (E) | Stock |
|---|---|---|---|---|---|---|
| 3" | Copper, Freedom Gray, Lead Coated Copper | 5.125" | 0.5" | 0.25" | 2" | 18" |
| 3" | Aluminum, Steel, Galvalume and Stainless Steel | 4.125 | 0.5" | 0.25" | 2" | 16" |
All dimensions are approximate with ~1/8" tolerance.
Submittals & Downloads
Color and Material Options
Material Options for Roof Flashing Metal and Edge Metal
Copper
Pre Patina Copper
Freedom Gray
Galvalume Plus
Lead Coated Copper
Stainless Steel
Zinc
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
