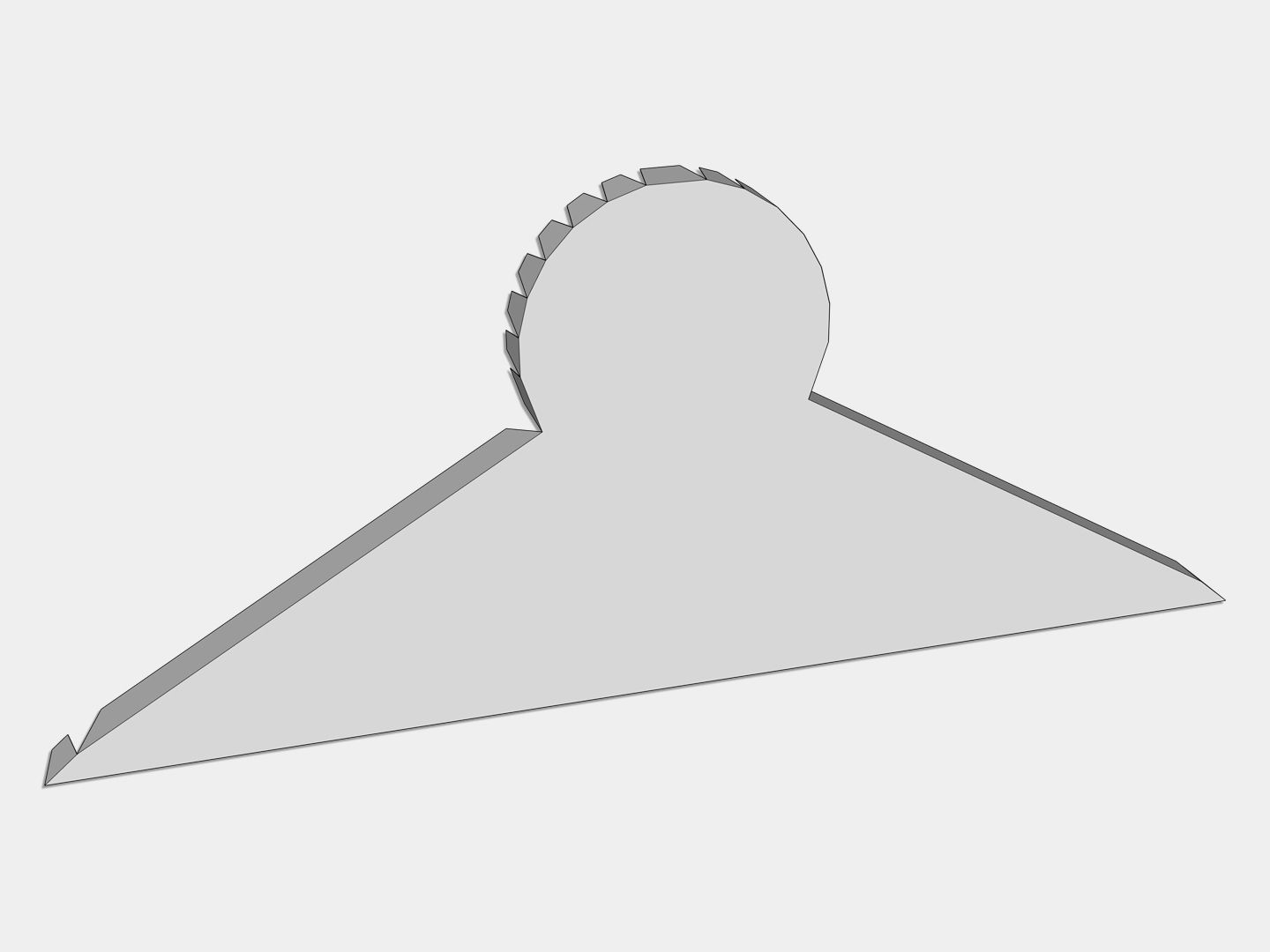

End Cap for Freedom Gray Ridge Roll Roof Flashing
Product Details
Brand: K&M Sheet Metal
End Cap for Ridge Roll
Available in 16 oz. and 20 oz. Freedom Gray.
Flat end cap for K&M's Ridge Roll. Features tabs for securing to our ridge cap via rivets, zip screws or soldering.
Custom profiles and dimension changes may be available for purchase and can be quoted via email.
Specifications
- Material: 16 oz. and 20 oz. Freedom Gray
- Made to Order
- Made in the USA
Ridge Cap Dimensions
| (A) Nominal / Stock size | Material | (B) | (C) | (D) Closed Hem | (E) | Stock |
|---|---|---|---|---|---|---|
| 3" | Copper, Freedom Gray, Lead Coated Copper | 5.125" | 0.5" | 0.25" | 2" | 18" |
| 3" | Aluminum, Steel, Galvalume and Stainless Steel | 4.125 | 0.5" | 0.25" | 2" | 16" |
All dimensions are approximate with ~1/8" tolerance.
Submittals & Downloads
Color and Material Options
Copper
Pre Patina Copper
Freedom Gray
Galvalume Plus
Galvanized Steel
Bonderized Steel
Lead Coated Copper
Zinc
Stainless Steel
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
