End Cap for Kynar Aluminum Ridge Roll Roof Flashing

RE3020
$21.95
In stock
1
Product Details
Brand: K&M Sheet Metal

End Cap for Ridge Roll

Available in 0.032" Kynar Aluminum in colors.

Flat end cap for K&M's Ridge Roll. Features tabs for securing to our ridge cap via rivets or zip screws.
Custom profiles and dimension changes may be available for purchase and can be quoted via email.

Specifications

  • Material: 0.032" Kynar® Coated Aluminum
  • Made to Order
  • Made in the USA

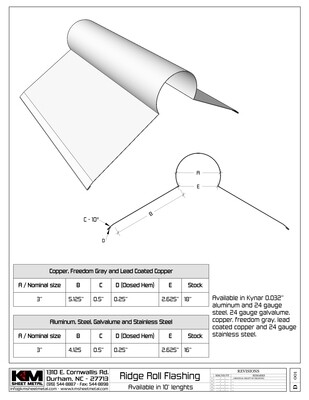

Ridge Cap Dimensions

(A) Nominal / Stock sizeMaterial(B)(C)(D) Closed Hem(E)Stock
3"Copper, Freedom Gray, Lead Coated Copper5.125"0.5"0.25"2"18"
3"Aluminum, Steel, Galvalume and Stainless Steel4.1250.5"0.25"2"16"

All dimensions are approximate with ~1/8" tolerance.

Submittals & Downloads
Color and Material Options
Pac Clad Standard 0.032" Kynar® Aluminum and 24 Gauge Galvanized Steel Common Roof Edge Metal and Flashing Metal Color Options
Black kynar aluminum

Black Aluminum

Matte black kynar steel

Matte Black Steel

Black kynar aluminum and galvanized steel

Charcoal Aluminum Steel

Dark bronze aluminum and galvanized steel

Dark Bronze Aluminum Steel

Medium bronze aluminum and galvanized steel

Medium Bronze Aluminum Steel

Copper penny aluminum and galvanized steel

Copper Penny Aluminum Steel

Almond aluminum and galvanized steel

Almond Aluminum Steel

Bone white aluminum and galvanized steel

Bone White Aluminum Steel

Atas Standard 0.032" Kynar® Aluminum and 24 Gauge Galvalume Steel Common Roof Edge Metal and Flashing Metal Color Options
Kynar Black aluminum and steel

Black Aluminum Steel

Kynar Charcoal Grey aluminum and steel

Charcoal Grey Aluminum Steel

Kynar Classic Bronze aluminum and steel

Classic Bronze Aluminum Steel

Kynar Medium Bronze aluminum and steel

Medium Bronze Aluminum Steel

Kynar Coppertone Bronze aluminum and steel

Coppertone Aluminum Steel

Kynar Matte Almond aluminum and steel

Almond Aluminum Steel

Kynar Bone White aluminum and steel

Bone White Aluminum Steel

Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
