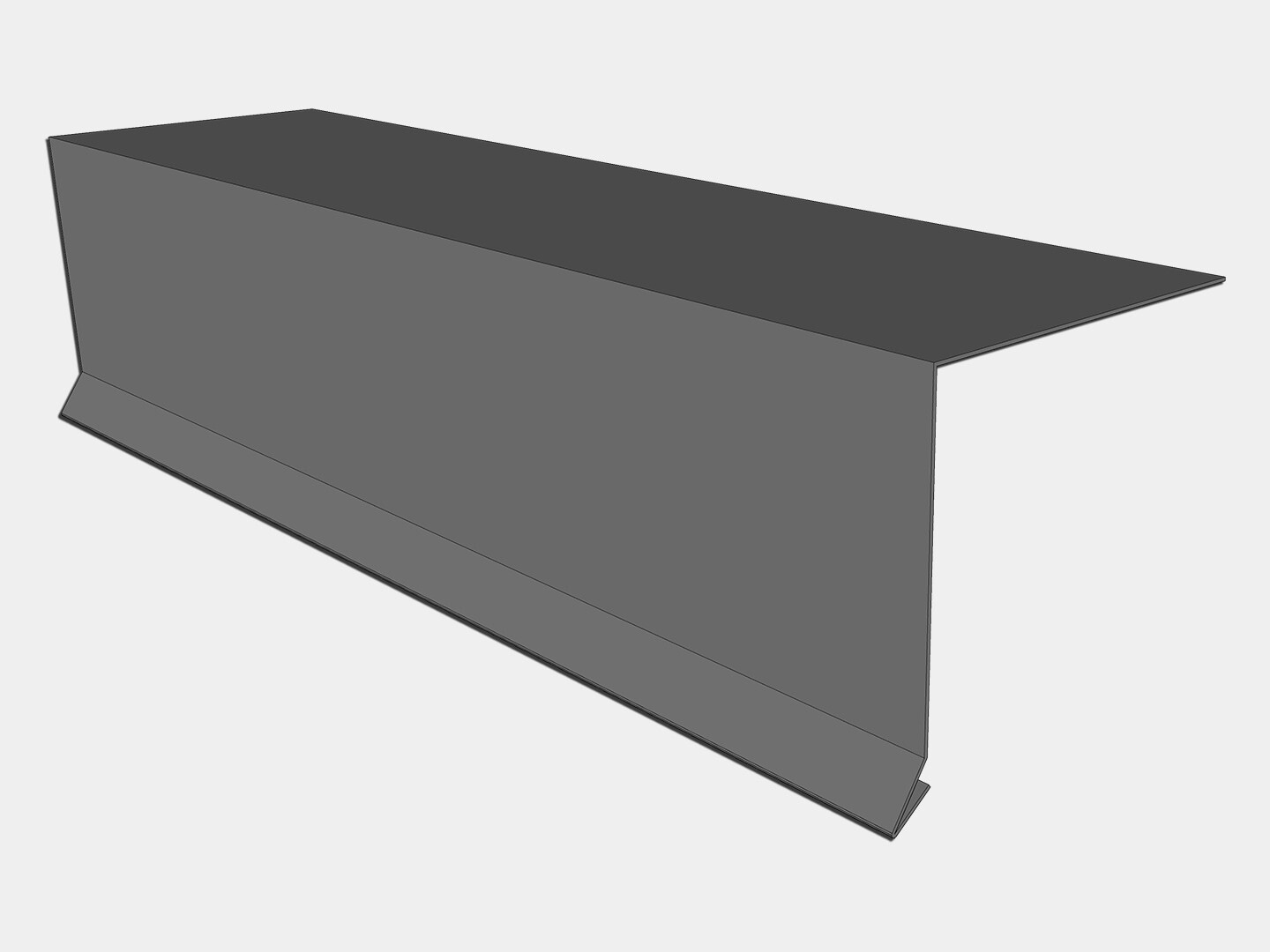

Lead Coated Copper Drip Edge with Kick

FED-13
$54.95
In stock
1
Product Details
Brand: K&M Sheet Metal
Shipping: This Item Requires a Skid and Freight Shipping.
Freight Delivery: Customer is responsible for unloading materials from the truck. *Residential delivery may be limited. Please Call before placing and order if your delivery address is difficult for a Semi-Truck to get to.

L Shape Roof Drip Edge Flashing Metal - 10' Length

Edge metal used on rubber, tile, slate and shingle roofs. Available in 16 oz. and 20 oz. Lead Coated Copper.

This simple drip edge profile, also known as "baldy cleat" is used on rubber roofs, slate and shingle roofs. It can be used to help direct water towards a gutter for example.
The name drip edge comes from the kick portion of this profile, at the very bottom, responsible for kicking the water away from the fascia board. That portion is essentially a drip edge.
Other common names for our drip edge profiles include 2"x2" drip edge, 3"x3" drip edge, etc.
You may order custom profiles through this page, browse our store for other profiles or send us an email for a quote on something even more intricate.

Specifications

  • Material: 16 oz. and 20 oz. LCC
  • 10' Lengths
  • Made to Order
  • Made in the USA
(H) Nominal SizeMaterial(A) Roof(B) Face(C) Kick(D) HemStock (Total Material)
1.5"Copper, Freedom Gray, Lead Coated Copper2.125"1"0.5"0.375"4"
1.5"Aluminum, Steel, Galvalume and Stainless Steel2.125"1"0.5"0.375"4"
3"Copper, Freedom Gray, Lead Coated Copper2.625"2.5"0.5"0.375"6"
3"Aluminum, Steel, Galvalume and Stainless Steel2.625"2.5"0.5"0.375"6"
4"Copper, Freedom Gray, Lead Coated Copper2.825"3.5"0.5"0.375"7.2"
4"Aluminum, Steel, Galvalume and Stainless Steel3.625"3.5"0.5"0.375"8"
6"Copper, Freedom Gray, Lead Coated Copper2.625"5.5"0.5"0.375"9"
6"Aluminum, Steel, Galvalume and Stainless Steel3.225"5.5"0.5"0.375"9.6"
8"Copper, Freedom Gray, Lead Coated Copper3.625"7.5"0.5"0.375"12"
8"Aluminum, Steel, Galvalume and Stainless Steel3.625"7.5"0.5"0.375"12"

All dimensions are approximate with ~1/8" tolerance.

Ordering Instructions
  • 1 - Pick your material. For other materials navigate back to Edge Metal.
  • 2.0 - Pick your dimensions. These are provided in the chart below.
  • 2.1 - Custom dimensions: Pick the appropriate selection for the amount of stock material needed.
    Example: If adding all dimensions of your custom profile (A+B+C+D) equals 11.5", you'll pick the next size up, for example, 12" stock. Provide dimensions for A, B, C and D (if hem is present) on field 5.
  • 3 - Hem. The hem is the folded portion after the kick. If you select "No hem", the material that is used for this portion would be added to the roof portion.
    Example: A 1.5" profile in copper has a 0.375" hem, which would be added to the roof dimension (A). (A) would become 2.5" (2.125" +0.375").
  • 4 - Roof pitch. Select 0 for no pitch / 90° standard angle / flat roof, or the appropriate / closest pitch. The roof pitch is determined by the rise over the run.
    Example: If for every horizontal 12" your roof rises 6", you have a pitch 6.
  • 5 - This is where you'll enter dimensions for fields A, B, C and D if a custom profile was selected on field 2, otherwise leave blank.
  • 6 - If you prefer to email a sketch you can use this field, otherwise, leave blank.
Submittals & Downloads

PDF - Drip edge roof flashing metal

Color and Material Options
Material Options for Roof Flashing Metal and Edge Metal
Copper

Copper

Pre Patina Copper

Pre Patina Copper

Freedom gray

Freedom Gray®

Galvalume Plus

Galvalume Plus

Lead coated copper

Lead Coated Copper

Stainless Steel

Stainless Steel

Zinc

Zinc

Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
