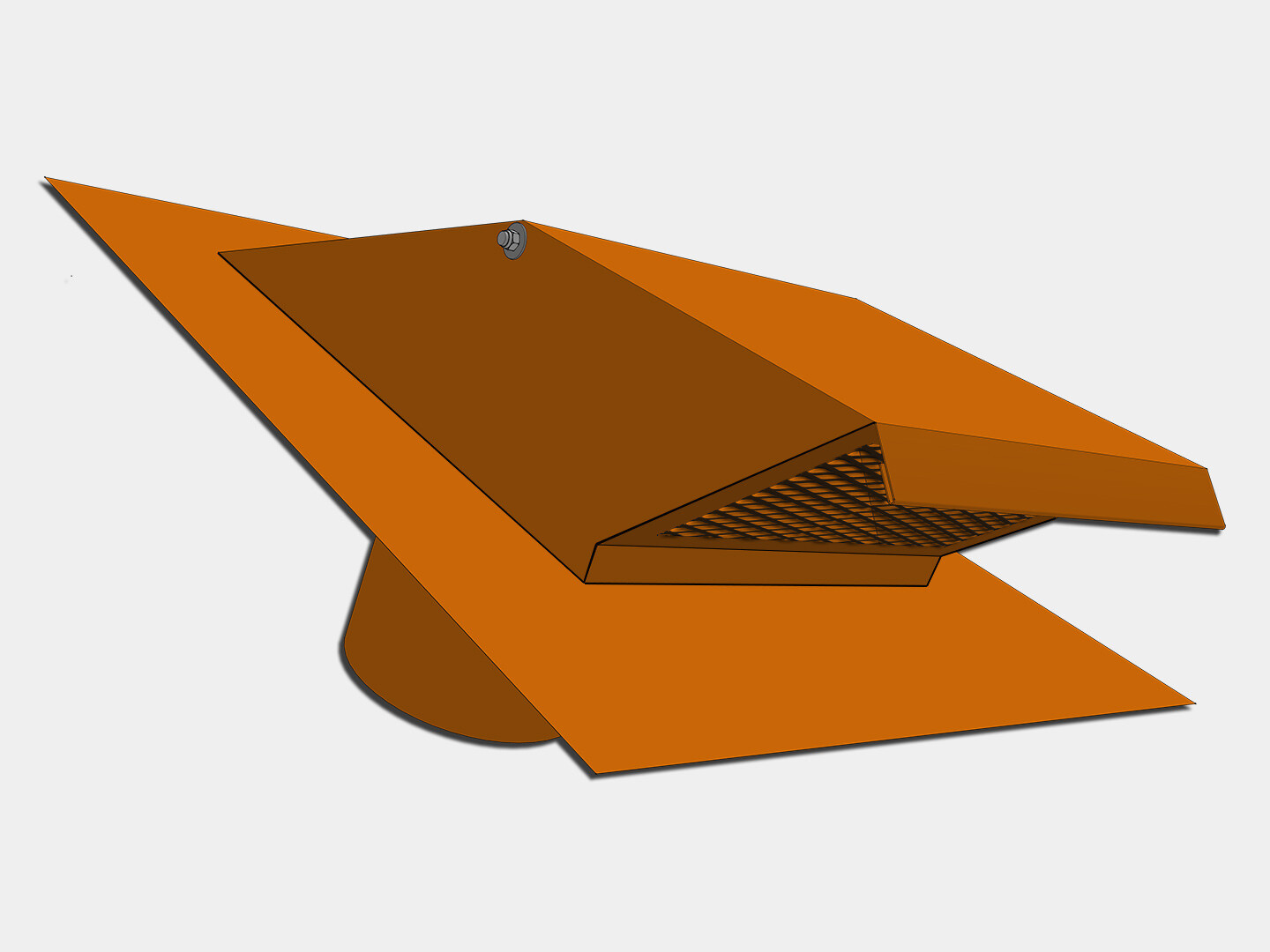

Premium Roof Box Vent with Damper
Premium Roof Box Vent With Built in Damper
Available in copper, lead coated copper and stainless steel
Our box vents are designed for standard kitchen and bath exhausts with a built-in damper. This vent can be used on any roof pitch between a 1/12 - 12/12 pitch for the damper to work correctly.
The low profile design with large hood provides one way airflow while maintaining weather protection.
Unlike cheap plastic vents that quickly succumb to the damaging effects of sunlight, freezing temperatures, or varmints looking to enter your home
Our vents are made from high-quality materials with soldered seams for the longest life and best leak protection.
Please contact us for a custom size, color or material.
Why is this box head not available in aluminum?
- This item is made up of several individual pieces because of its intricacy. For this reason, it is only offered in materials that can be soldered.
The alternative to aluminum, is to offer it in stainless steel, since it can be soldered and powder coated to match the standard colors we offer.
Specifications
- Width: Vent Pipe Size + 9"
- Length: Vent Pipe Size + 19.5"
- Height: 4.5"
Vent Pipe Connection Options
- 4", 6", 8" & 10" Round
Availability
- Made to order
- Made in the USA


Submittals & Downloads
Color and Material Options
Stainless Steel Powder Coated to Match 0.027" Aluminum Colors

Black

Dark Bronze

Musket Brown

Royal Brown

Almond

Linen

Low Gloss White

High Gloss White
The most popular colors in 0.027" aluminum are Dark Bronze and Black
Click here for a full list of 0.027" aluminum colors
Stainless Steel Powder Coated to Match Kynar Pac Clad Standard Aluminum Galvalume Steel Material Colors

Black Aluminum

Matte Black Steel

Charcoal Aluminum Steel

Dark Bronze Aluminum Steel

Medium Bronze Aluminum Steel

Copper Penny Aluminum Steel

Almond Aluminum Steel

Bone White Aluminum Steel
The most popular roof vent colors in Galvalume Steel and Aluminum Kynar are Black and Dark Bronze
Click here for a full list of Kynar metal colors
Common Material Options for Roof Vents

Copper

Pre Patina Copper

Freedom Gray

Lead Coated Copper

Stainless Steel

Zinc
Copper is the most popular metal for roof vents. It is offered in 16 oz. and 20 oz.
Freedom Gray (zinc / tin coated copper) is offered in 16 oz. and 20 oz.
Lead Coated Copper is offered in 16 oz. and 20 oz.
Zinc is offered in 0.7 mm and 0.8 mm with a raw finish.
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
