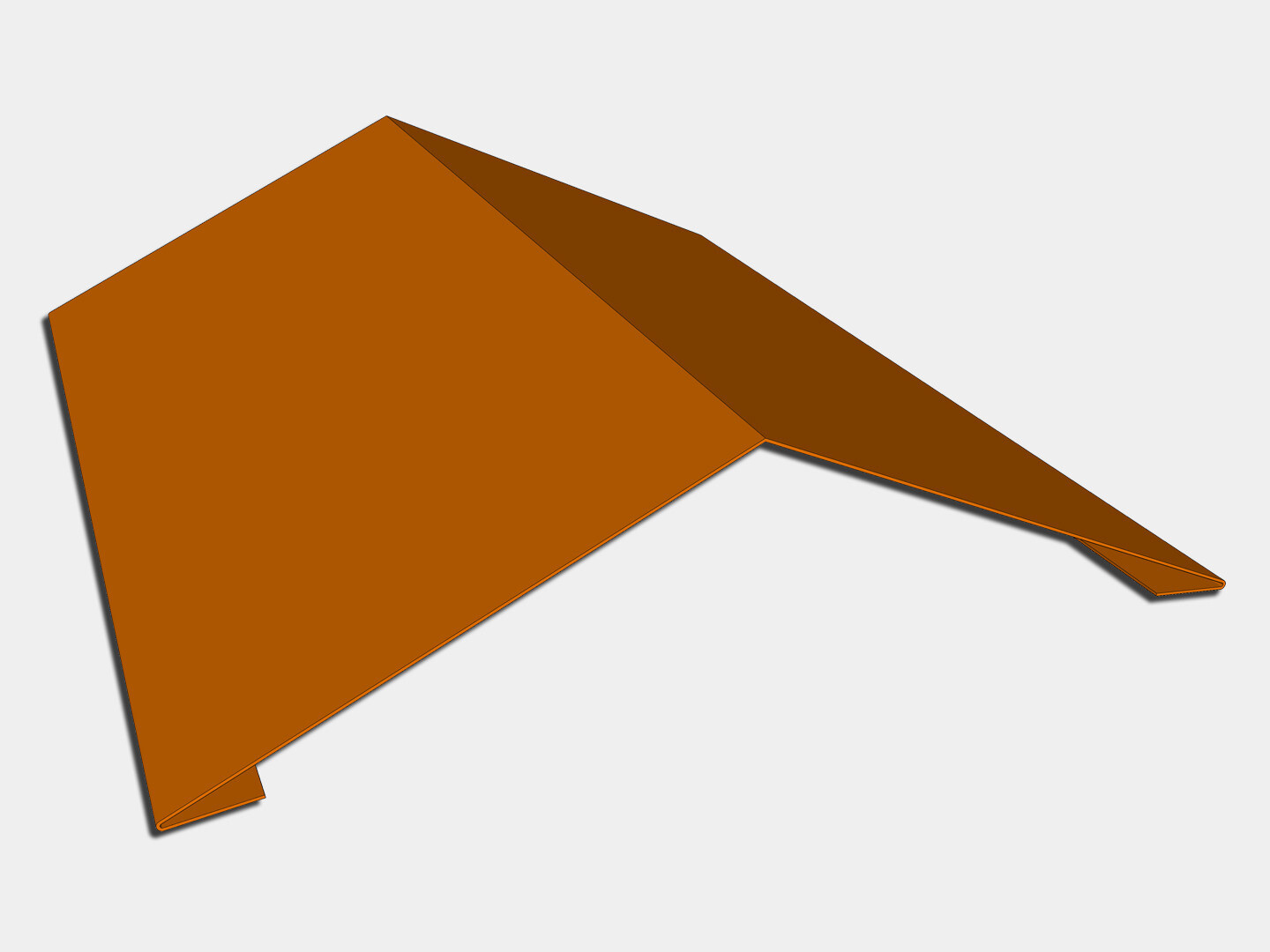

Copper Ridge Cap Roof Flashing
Ridge Cap Roof Flashing Metal - 10' Length
Flashing metal used on tile, slate, wood, shingle and metal roofs. Available in 16 oz. and 20 oz. Copper.
A Ridge Cap is a piece of roof flashing metal placed at the very peak of the roof, where the two roof slopes meet, creating the ridge.
This is the very last step on installing a roof system. It is not only a decorative portion of a roof, but it creates a leak proof water directional barrier.
This simple profile can be used with mostly any roof system, but its design comes from its usage on metal roof systems, where it hooks onto J channels on both sides of the ridge.
Custom profiles and dimension changes can be quoted via email.
Specifications
- Material: 16 oz. and 20 oz. Copper
- 10' Lengths
- Made to Order
- Made in the USA
| Size | Material | (A) | (B) | (C) | (D) | Stock |
|---|---|---|---|---|---|---|
| Small | Copper, Freedom Gray, Lead Coated Copper | 5.25" | 5.25" | 0.75" | 0.75" | 12" |
| Large | Copper, Freedom Gray, Lead Coated Copper | 8.25" | 8.25" | 0.75" | 0.75" | 18" |
| Small | Aluminum, Steel, Galvalume and Stainless Steel | 5.25" | 5.25" | 0.75" | 0.75" | 12" |
| Large | Aluminum, Steel, Galvalume and Stainless Steel | 7.25" | 7.25" | 0.75" | 0.75" | 16" |
Roof Ridge Angle
| Roof Pitch | Roof Slope | Ridge Angle | Finished Flashing Angle (Measured on the inside) |
|---|---|---|---|
| 1" | 4.76° | 9.52° | 170° (170.48°) |
| 2" | 9.46° | 18.92° | 161° (161.08°) |
| 3" | 14.04° | 28.08° | 152° (151.92°) |
| 4" | 18.43° | 36.86° | 143° (143.14°) |
| 5" | 22.62° | 45.24° | 135° (134.76°) |
| 6" | 26.57° | 53.14° | 127° (126.86°) |
| 7" | 30.26° | 60.52° | 119° (119.48°) |
| 8" | 33.69° | 67.38° | 113° (112.52°) |
| 9" | 36.87° | 73.74° | 106° (106.26°) |
| 10" | 39.81° | 79.62° | 100° (100.38°) |
| 11" | 42.51° | 85.02° | 95° (94.98°) |
| 12" | 45° | 90° | 90° |
| 13" | 47.29° | 94.58° | 85° (85.42°) |
| 14" | 49.4° | 98.8° | 81° (81.2°) |
| 15" | 51.34° | 102.68° | 77° (77.32°) |
| 16" | 53.13° | 106.26° | 74° (73.74) |
| 17" | 54.78° | 109.56° | 70° (70.44°) |
| 18" | 56.31° | 112.62° | 67° (67.38°) |
All dimensions are approximate with ~1/8" tolerance.
Submittals & Downloads
Color and Material Options
Material Options for Roof Flashing Metal and Edge Metal
Copper
Pre Patina Copper
Freedom Gray®
Galvalume Plus
Lead Coated Copper
Stainless Steel
Zinc
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
