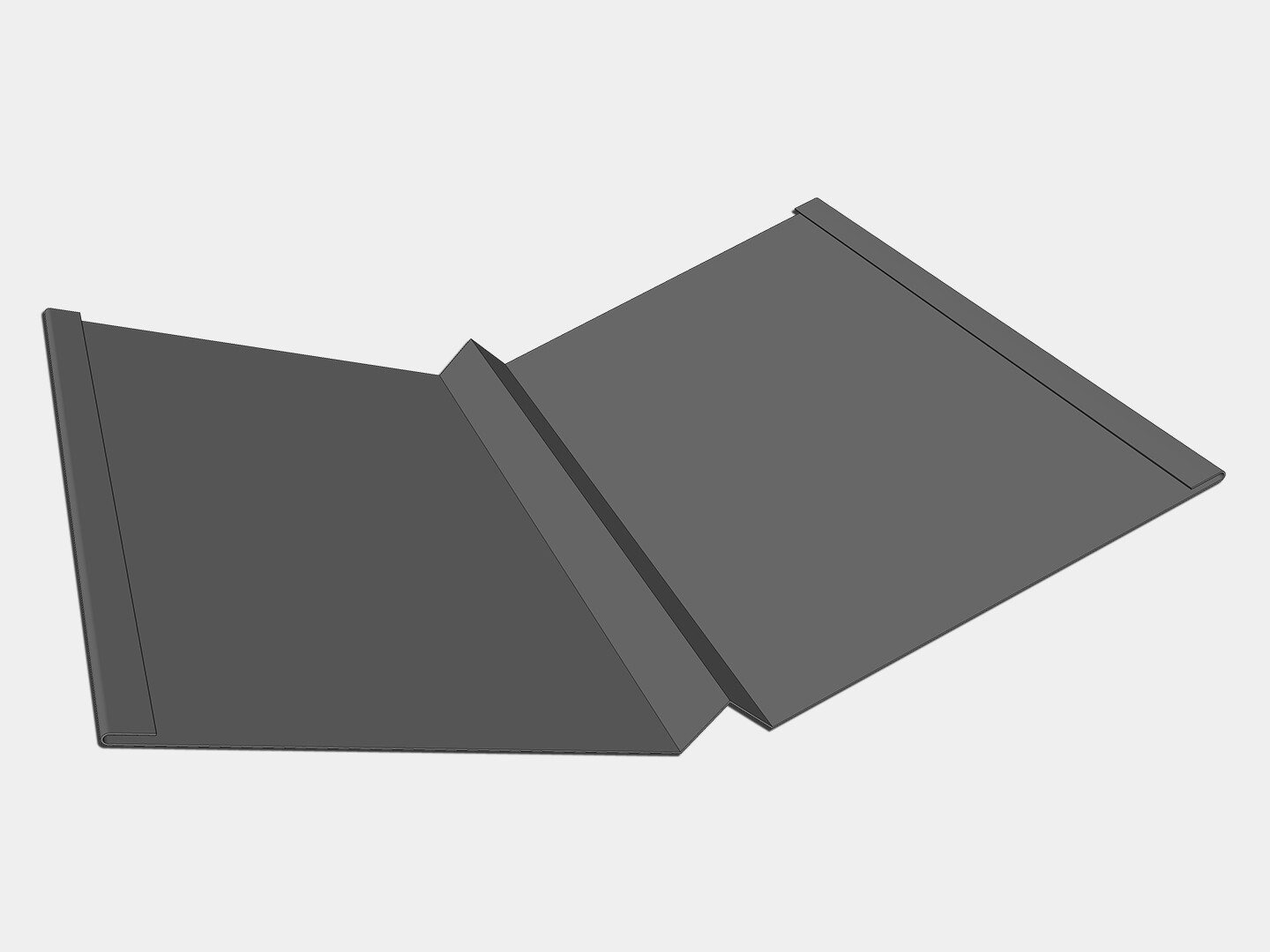

W Valley Flashing For Roofs - 10' Length
Flashing metal used on tile, slate and metal roofs. Available in 16 oz. and 20 oz. Lead Coated Copper.
A roof valley is a channel created where two different roof slopes meet / where a roof changes direction. A W valley is a type of roof flashing metal used to help prevent cross-wash, which can happen when water comes down the roof at a certain speed, enough to to flow from one side of the roof across the valley and up beneath the slate, shingles or tile on the adjacent roof slope.
The W valley profile we sell features 1/2" open hems for clip installation, while making edges not sharp which is always a plus when carrying the material.
W valleys are extremely common in slate roofing installations.
Custom profiles and dimension changes can be quoted via email.
Specifications
- Material: 16 oz. and 20 oz. LCC
- 10' Lengths
- Made to Order
- Made in the USA
Hip and Valley Factor Table
| Nominal / Stock size | Material | (A) Open Hem | (B) | (C) |
|---|---|---|---|---|
| 18" | Copper, Freedom Gray, Lead Coated Copper | 0.5" | 7.5" | 1" |
| 24" | Copper, Freedom Gray, Lead Coated Copper | 0.5" | 10.5" | 1" |
| 36" | Copper, Freedom Gray, Lead Coated Copper | 0.5" | 16.5" | 1" |
| 16" | Aluminum, Steel, Galvalume and Stainless Steel | 0.5" | 6.5" | 1" |
| 24" | Aluminum, Steel, Galvalume and Stainless Steel | 0.5" | 10.5" | 1" |
| 36" | Aluminum, Steel, Galvalume and Stainless Steel | 0.5" | 16.5" | 1" |
Hip and Valley Factor Table
| Roof Pitch | Roof Slope | Hip or Valley Rafter Slope | Hip and Valley Factor | Finished Angle (Measured on the inside) |
|---|---|---|---|---|
| 1" | 4.76° | 3.37° | 1.4167 | |
| 1.5" | 7.13° | 5.05° | 1.4197 | |
| 2" | 9.46° | 6.72° | 1.424 | 166.5° |
| 2.5" | 11.77° | 8.38° | 1.4295 | |
| 3" | 14.04° | 10.03° | 1.4362 | |
| 3.5" | 16.26° | 11.65° | 1.444 | |
| 4" | 18.43° | 13.26° | 1.4529 | 154° |
| 4.5" | 20.56° | 14.85° | 1.4631 | |
| 5" | 22.62° | 16.42° | 1.4743 | |
| 5.5" | 24.62° | 17.96° | 1.4866 | |
| 6" | 26.57° | 19.47° | 1.5 | 143° |
| 6.5" | 28.44° | 20.96° | 1.5144 | |
| 7" | 30.26° | 22.42° | 1.5298 | |
| 7.5" | 32.01° | 23.84° | 1.5462 | |
| 8" | 33.69° | 25.24° | 1.5635 | 134° |
| 8.5" | 35.31° | 26.61° | 1.5817 | |
| 9" | 36.87° | 27.94° | 1.6008 | |
| 9.5" | 38.37° | 29.24° | 1.6207 | |
| 10" | 39.81° | 30.51° | 1.6415 | 126° |
| 10.5" | 41.19° | 31.75° | 1.663 | |
| 11" | 42.51° | 32.95° | 1.6853 | |
| 11.5" | 43.78° | 34.12° | 1.7083 | |
| 12" | 45° | 35.27° | 1.7321 | 120° |
| 12.5" | 46.17° | 36.38° | 1.7564 | |
| 13" | 47.29° | 37.45° | 1.7815 | |
| 13.5" | 48.37° | 38.50° | 1.8071 | |
| 14" | 49.4° | 39.52° | 1.8333 | 115° |
| 14.5" | 50.39° | 40.51° | 1.8601 | |
| 15" | 51.34° | 41.47° | 1.8874 | |
| 15.5" | 52.25° | 42.41° | 1.9153 | |
| 16" | 53.13° | 43.31° | 1.9437 | 111° |
| 16.5" | 53.97° | 44.20° | 1.9725 | |
| 17" | 54.78° | 45.05° | 2.0017 | |
| 17.5" | 55.56° | 45.88° | 2.0314 | |
| 18" | 56.31° | 46.69° | 2.0616 | 108° |
| 18.5" | 57.03° | 47.47° | 2.0921 | |
| 19" | 57.72° | 48.23° | 2.123 | |
| 19.5" | 58.39° | 48.97° | 2.1542 | |
| 20" | 59.04° | 49.69° | 2.1858 | 105° |
| 20.5" | 59.66° | 50.38° | 2.2177 | |
| 21" | 60.26° | 51.06° | 2.25 | |
| 21.5" | 60.83° | 51.72° | 2.2826 | |
| 22" | 61.39° | 52.35° | 2.3154 | 103° |
| 22.5" | 61.93° | 52.98° | 2.3485 | |
| 23" | 62.45° | 53.58° | 2.3819 | |
| 23.5" | 62.95° | 54.17° | 2.4156 | |
| 24" | 63.43° | 54.74° | 2.4495 | |
| 24.5" | 63.90° | 55.29° | 2.4836 |
All dimensions are approximate with ~1/8" tolerance.
Prop 65 Warning(s)
Submittals & Downloads
Color and Material Options
Material Options for Roof Flashing Metal and Edge Metal
Copper
Pre Patina Copper
Freedom Gray
Galvalume Plus
Lead Coated Copper
Stainless Steel
Zinc
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
