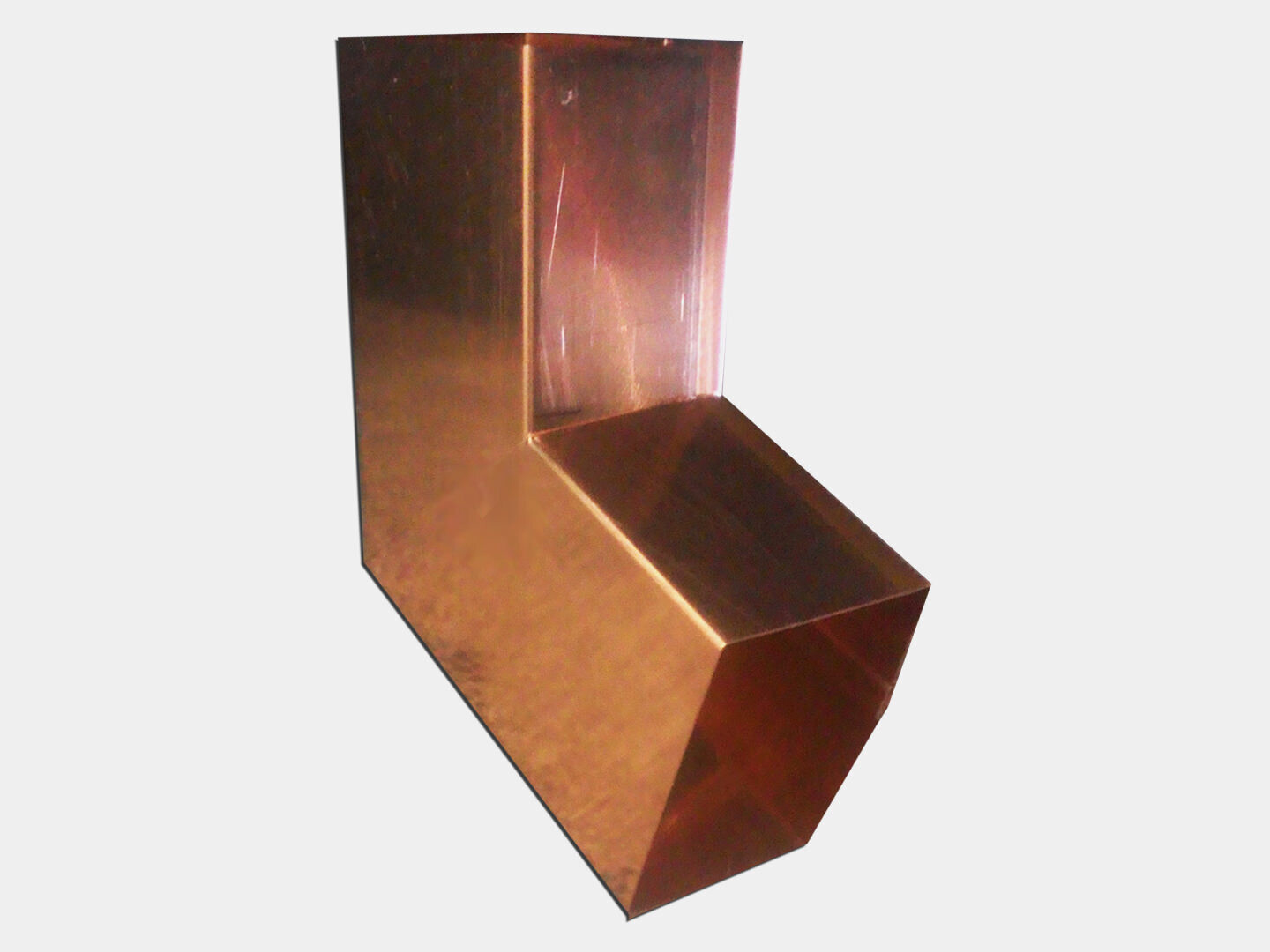

Plain Square Copper Elbow (B) Style
Plain Square Copper Elbow
Available in 16 oz. and 20 oz. Copper.
Elbows are fittings designed to change the downspout direction in pre specified angles. A "B" style elbow refers to an elbow that, when attached to a downspout, angles the downspout sideways in reference to a building. Plain Square Elbows are commonly paired with K-Style and Box Gutters, but not necessarily. Typically 2"x3" is selected for 5" K Style and 3"x4" is used with 6" K Style.
The non crimped end easily fits over the outside of an outlet or the crimped end of a downspout. We also sell crimpers for the downspout portion not crimped (if it was trimmed for example).
Custom colors and materials are available. Please contact us for pricing.
Specifications
- Size: 2" x 3", 3" x 4", 4" x 5" & 4" x 6"
- Material Thickness: 16 oz. Copper
- Angle: #0 (30°), #1 (45°), #2 (60°), #3 (75°) and #4 (90°)
- Custom sizes: 3" x 3", 4" x 4", 5" x 5", 6" x 6" and others available as custom orders
Submittals & Downloads
PDF - 3"x4" Plain Smooth Elbow
Color and Material Options
Common Material Options for Elbows
Copper is the most popular metal for elbow. It is offered in 16 oz. and 20 oz.

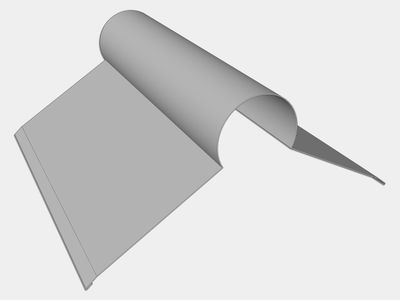

Freedom Gray® (zinc / tin coated copper) is offered in 16 oz. and 20 oz.
Galvalume Plus is offered in 24 gauge.
Lead Coated Copper is offered in 16 oz. and 20 oz.
Zinc is offered in 0.7 mm and 0.8 mm with a raw finish.
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
