0.027" Aluminum Hidden Mount Strap for Plain Square or Round Downspout
Available in Several colors. 0.027" Aluminum. Downspout wall attachment.

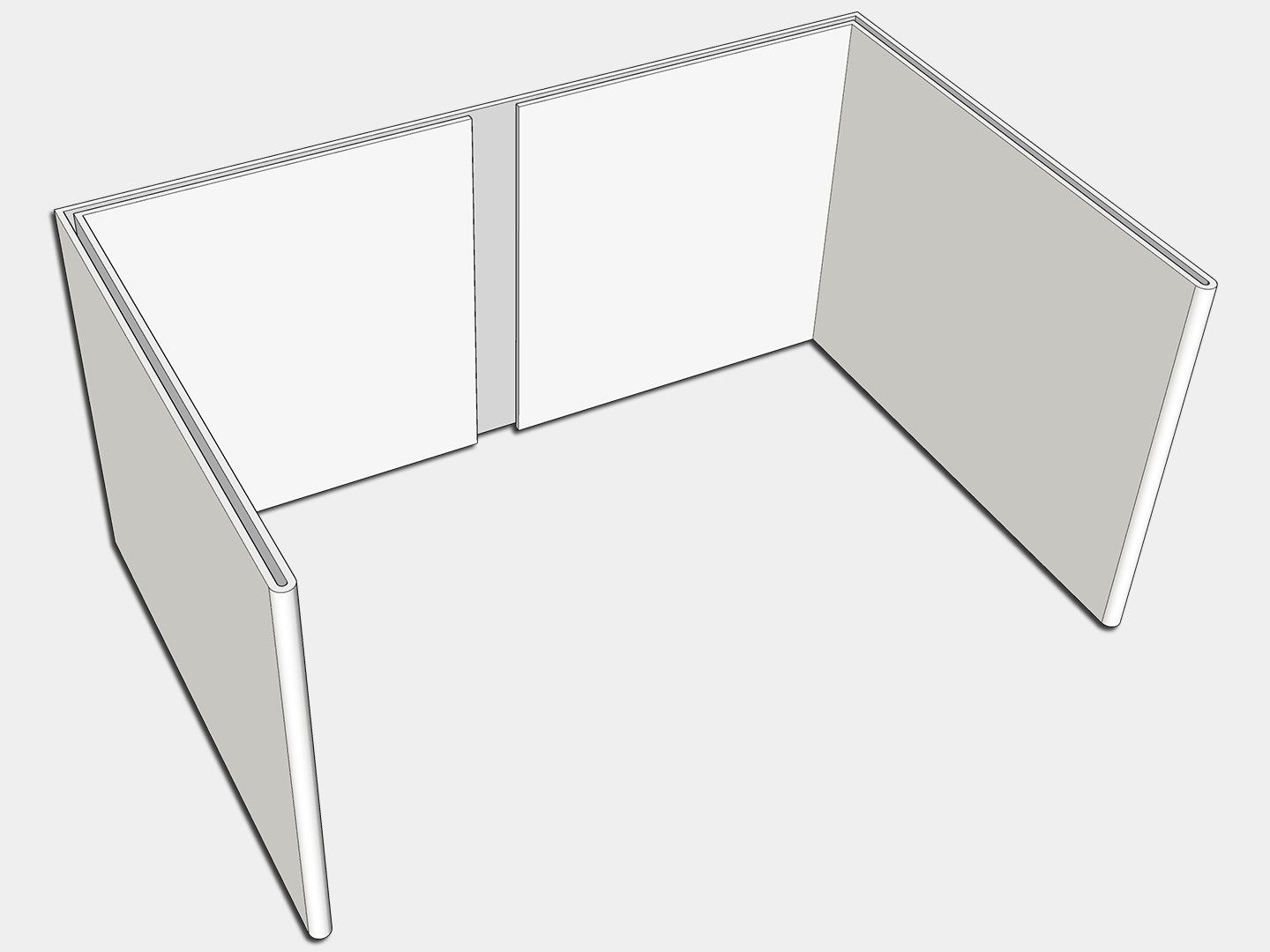

Downspout straps come pre formed to fit our standard plain square or round downspouts. This bracket is designed to get installed to the wall before the installation of downspouts. After which, the legs can be screwed or riveted into the side of the downspout.
This item can be used with our standard downspout strap (Select the 1 1/2" depth option if using in conjunction with our standard downspout strap)
Custom colors, sizes and materials are available as custom items. Please, contact us for a quote.
| Downspout Size | A / Width | B / Leg | C / Depth | F / Stock Size | |
|---|---|---|---|---|---|
| 2"x3" / 3"x3" or 3" Round | 3.25" | 1.75" | 1.5" or 2"0.5" | 14" | |
| 3"x4" / 4"x4" or 4" Round | 4.25" | 2.75" | 1.5" or 2" | 19" | |
| 4"x5" / 5"x5" or 5" Round | 5.25" | 2.75" | 1.5" or 2" | 20" |
Submittals & Downloads
Color and Material Options
0.027" Aluminum Downspout Strap Color Options
Black
Dark Bronze
Musket Brown
Royal Brown
Almond
Linen
Low Gloss White
High Gloss White
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
